AutoCAD 리습 - 라인 연장과 트림 시키는 리습 Extend and Trim (Line)KiKO LISP 2023. 4. 10. 23:23728x90

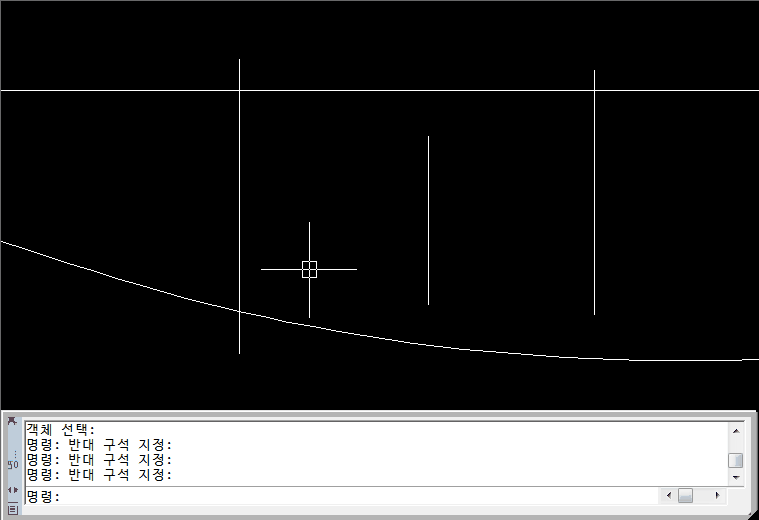

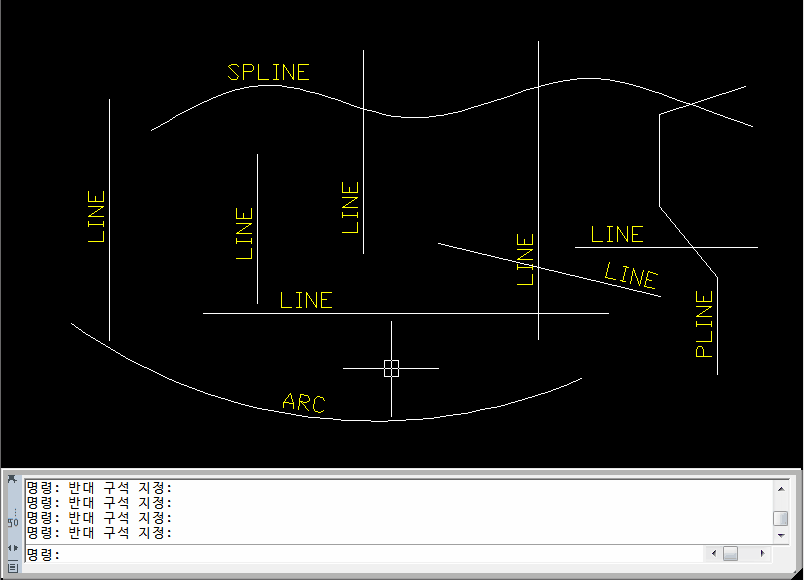

ET : 라인 개체의 Extend 와 Trim을 동시에 하는 기능.
이 리습은 실행 후 변경된 객체 리스트(Selection set)를 반환합니다.
그 값을 이용해 추가적인 명령 연결이 가능합니다.
아래 리습 라인을 'KiKO-Library.lsp' 에 추가하여 사용 할 수 있습니다.

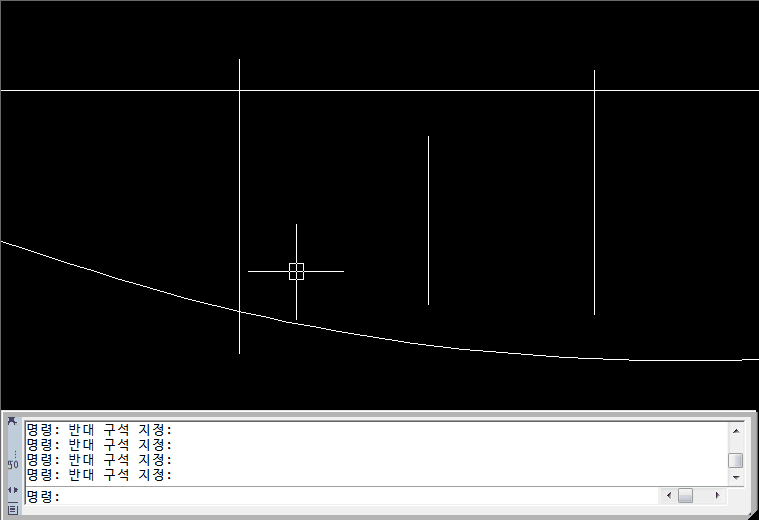

일정 간격을 띄우고 연장 및 트림 하기. (아래 함수를 추가) / 뒤에 50은 간격을 띄울 거리
(defun C:ET5 (/) (KiKO:Extent_Trim_Line 50))
연장 및 트림 한 뒤 화살표 그리기. (아래 함수를 추가)
(defun C:ETT (/) (KiKO_End_Arrow_End (KiKO:Extent_Trim_Line nil)))
즐거운 하루되시고 오늘도 빨리 퇴근 합시다.
아래의 모든 리습은 'KiKO Lisp'에 모두 포함된 리습입니다.
KiKO 리습 모음을 사용중이면 필요 없습니다.
May the force be with you.AutoCAD 와 ZWCAD 2023 에서 사용 가능합니다.
(defun C:명령 ( / ) (KiKO:Extent_Trim_Line nil) (princ))
더 많은 리습은 아래에서...
- 리습 다운로드
